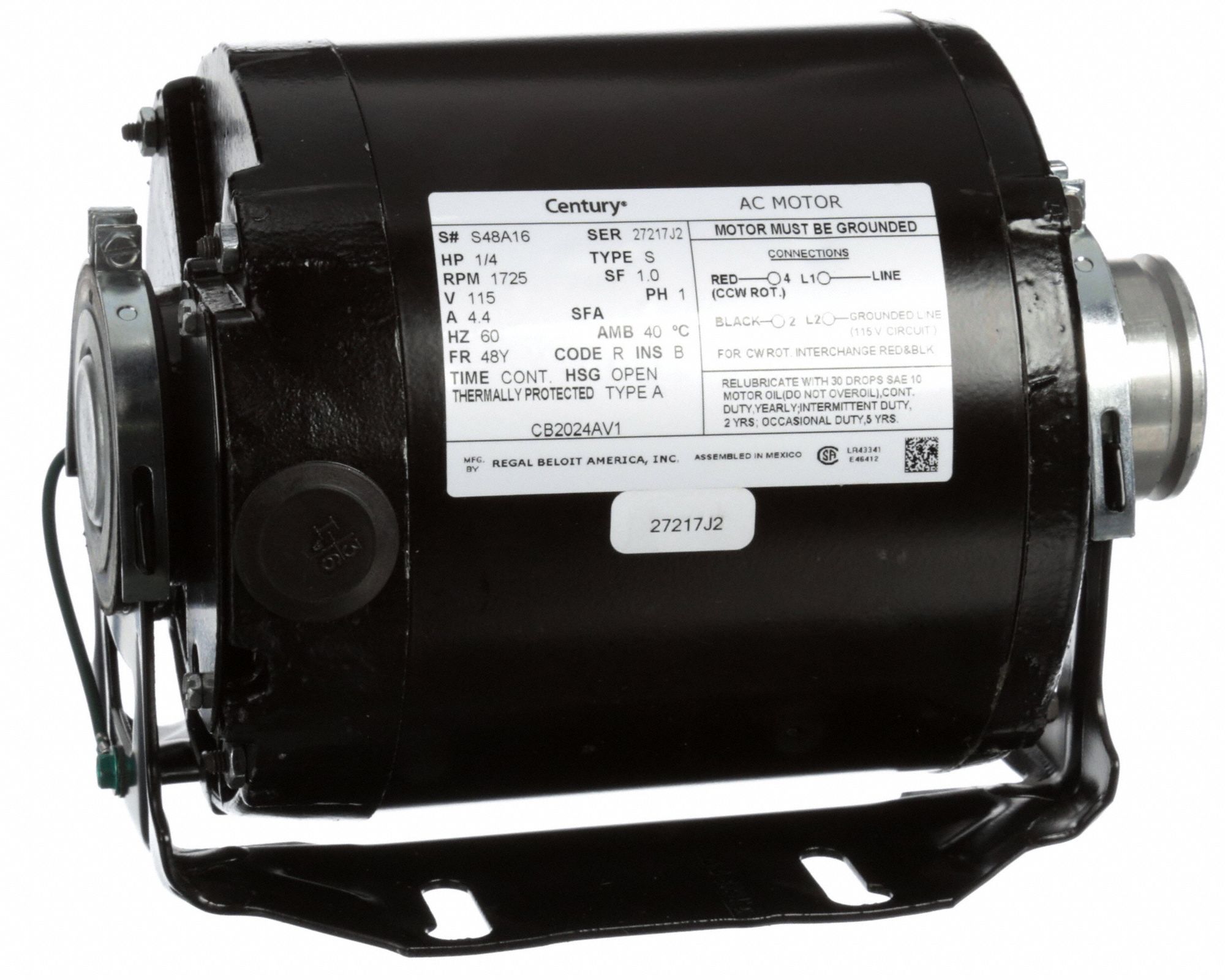

| Item | Carbonator Pump Motor |
| Bearings | Sleeve |
| Body Dia. | 5.714" |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Full Load Amps | 4.4A |
| Height | 5.812" |
| Hp | 1/4 hp |
| Hz | 60 Hz |
| Length Less Shaft | 7.812" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Pumps |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Carbonator Pumps |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 1725 RPM |
| Nema Design | none |
| Number Of Speeds | 1 |
| Overall Length | 8.062" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1/4" |
| Voltage | 115V AC |
| Ship weight (kg) | 12 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 17.78 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Nameplate RPM | Number of Speeds | Overall Length | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CB2054AD | 48 | 6.8/3.4A | 1/2 | 8 1/2" | 1725/1425 | 2 | 8 13/16" | 115/230V AC | SGD 566.70 |
