DAYTON

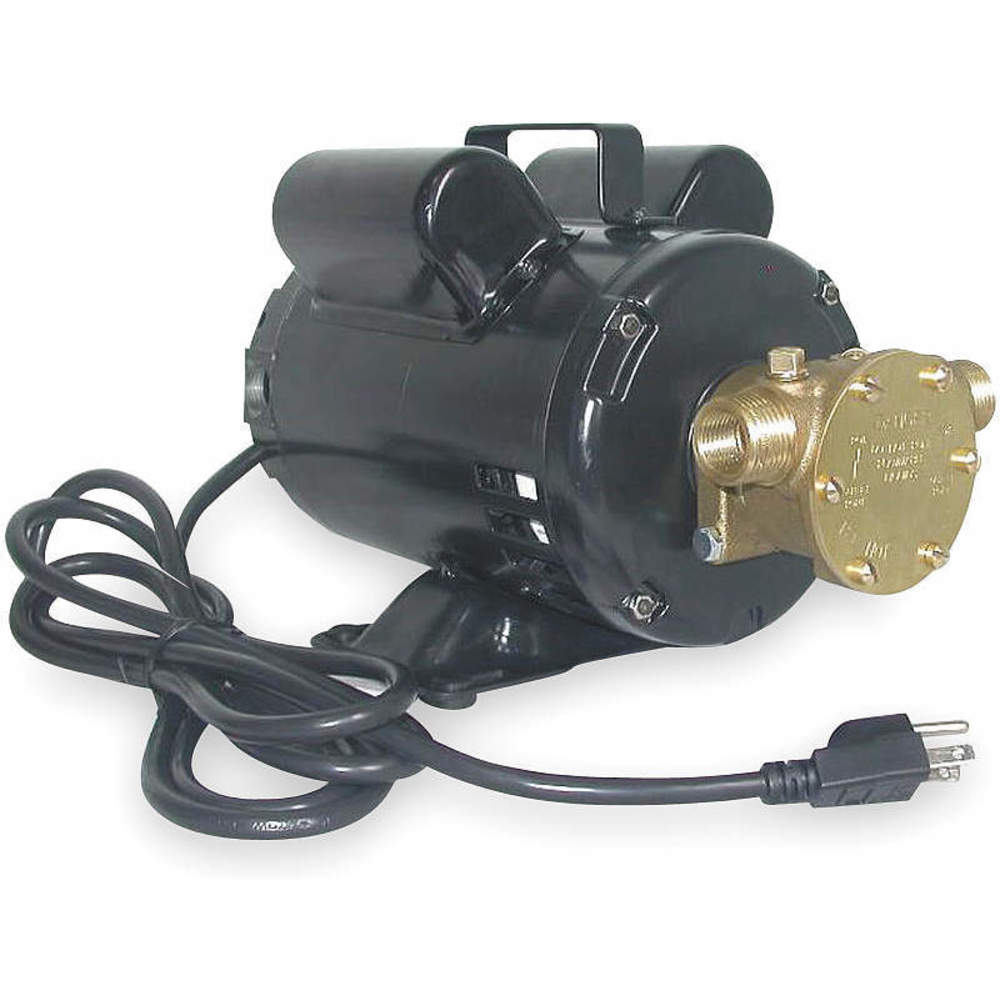

DAYTON 3ACB9 Pump Bronze 1/3 Hp 115/230v 7.2/3.6 Amps

Item: AC8HBD Model: 3ACB9

See variants (9)

In Stock

Get it by Tuesday, Mar 4

Flat Shipping at SGD 24.99 + GST SGD 24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

SGD 1,246.49 /unit (inc. GST)

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Pump
Amps	7.2A
Frequency	60 Hz
Gpm Of Water @ 10 Ft. Of Head	9.6
Gpm Of Water @ 20 Ft. Of Head	8.1
Gpm Of Water @ 30 Ft. Of Head	6.8
Gpm Of Water @ 40 Ft. Of Head	4.4
Height	8.286"
Housing Material	Brass
Hp	1/3 hp
Impeller Material	Buna N
Inlet/outlet	1/2 NPT x 3/4 GHT
Length	13"
Max. Head	50 ft.
Max. Pressure	21.6 psi
Max. Ssu @ 1725 Rpm	5000
Max. Viscosity	5000 SUS
Motor Type	Open Drip Proof
Prime In Feet	16 Ft. To 20 Ft. Wet
Rpm	1725 RPM
Seal	Nitrile Lip
Self-priming	Yes
Shaft Material	Stainless Steel
Suction Lift	22 ft.
Temp. Range	50-180 F
Type	Flexible Impeller
Voltage	115/230
Width	6.714"

Shipping Info:

Ship weight (kg)	9
Ship height (cm)	40.64
Ship length (cm)	48.26
Ship width (cm)	29.21
HS code	8413600090
Country of Origin	CN

Product Details:

NEMA Motor Frame (56YZ)
Characteristics: Positive Displacement Pumping Action Without Metal-to-Metal Contact.

Product Variants

Model	Amps	Body Material	GPM of Water @ 10 Ft. of Head	GPM of Water @ 20 Ft. of Head	GPM of Water @ 30 Ft. of Head	GPM of Water @ 40 Ft. of Head	GPM of Water @ 60 Ft. of Head	Height	Price
3ABZ4	9.4/4.7	-	7.1	6.7	6.1	5.8	3.8	12"	SGD 2,167.18
3ABZ5	11.2/5.6	-	11.9	10.5	9.6	8.6	5.4	12"	SGD 2,021.08
3ACA9	-	Bronze and Brass	5.5	5	4.8	4.6	4.1	3 15/16"	SGD 715.15
3P682	-	-	-	-	-	-	-	24"	SGD 6,286.84
PP62003G	-	-	-	-	-	-	-	-	SGD 31.40
4TA88	-	-	-	-	-	-	-	24"	SGD 4,264.94
HVGR60BG	-	-	-	-	-	-	-	-	SGD 644.45
