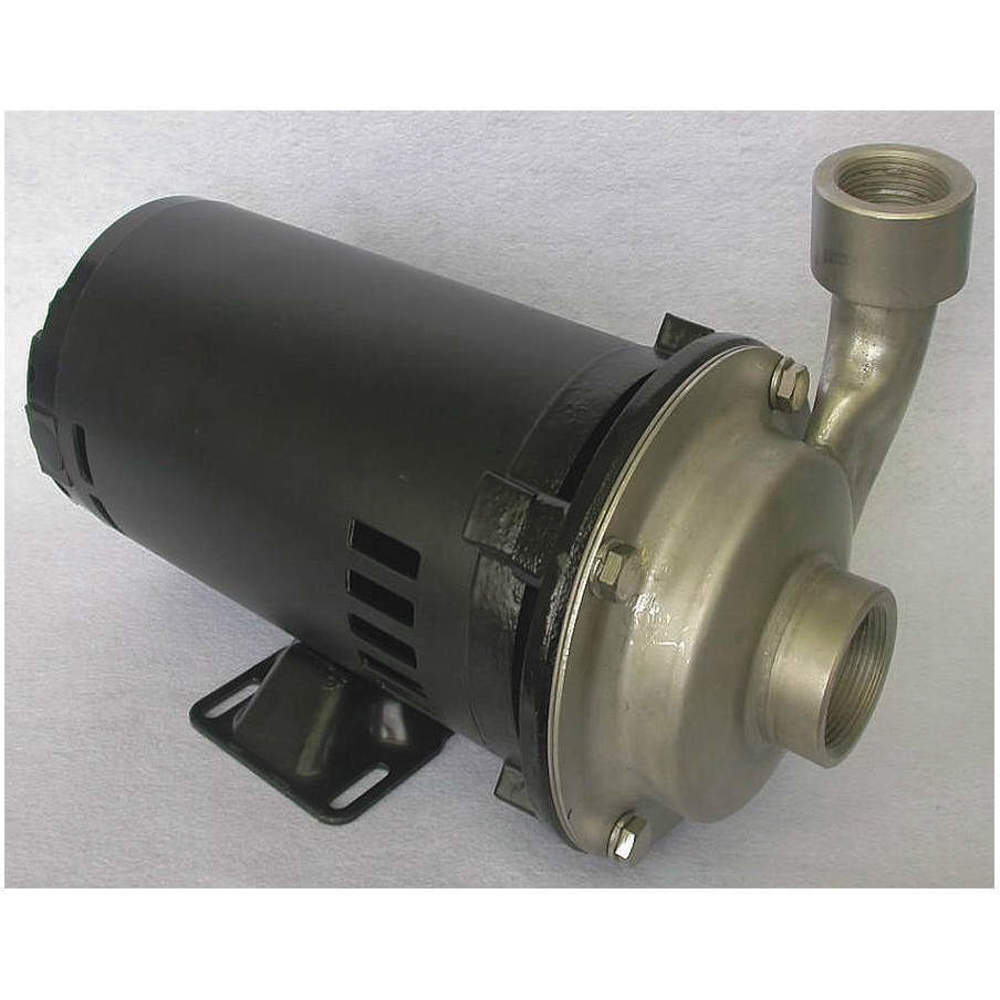

Item | Centrifugal Pump |
Agency Compliance | Cus |
Amps | 4.8/2.4 |
Bearing Type | Ball |
Best Efficiency Gpm @ Head | 48 @ 40 Ft. |
Best Efficiency Range Gpm @ Head | 66 @ 20 to 21 @ 50 Ft. |
Drain Plug | No |
Duty | Continuous |
Frequency | 60 Hz |
Gpm Of Water @ 10 Ft. Of Head | 84 |
Gpm Of Water @ 15 Ft. Of Head | 79 |
Gpm Of Water @ 20 Ft. Of Head | 77 |
Gpm Of Water @ 25 Ft. Of Head | 70 |
Gpm Of Water @ 30 Ft. Of Head | 57 |
Gpm Of Water @ 40 Ft. Of Head | 48 |
Gpm Of Water @ 5 Ft. Of Head | 90 GPM |
Gpm Of Water @ 50 Ft. Of Head | 24 |
Gpm Of Water @ 60 Ft. Of Head | 8 |
Height | 7 7/8" |
Housing Material | Stainless Steel |
Hp | 1 hp |
Hz | 60 |
Impeller Material | Stainless Steel |
Impeller Type | Closed |
Inlet | 1-1/2" NPT |
Inlet Pressure | 121 psi |
Inlet Type | Npt |
Length | 14 1/4" |
Max. Case Pressure | 150 psi |
Max. Dia. Solids | 1/8" |
Max. Flow Rate | 90 GPM |
Max. Fluid Viscosity | 31 SUS |
Max. Gpm @ Head | 90 @ 5 Ft. |
Max. Head | 65 ft. |
Max. Liquid Temp. | 200 F |
Max. Specific Gravity | 1 |
Min. Ambient Temp. | 40°F |
Min. Flow Rate | 8 GPM |
Min. Gpm @ Head | 8 @ 60 Ft. |
Motor Enclosure | Open Drip Proof |
Motor Rpm | 3450 |
Motor Type | Three Phase Induction |
Nema/iec Frame | 56J |
Outlet | 1-1/4 NPT |
Phase | 3 |
Port Rotation | 90 Deg. Increments |
Screw Material | Stainless Steel |
Seal Material | Viton |
Seal Type | Mechanical Seal |
Service Factor | 1.15 |
Shaft Material | Stainless Steel |
Type | Chemical Resistant |
Voltage | 230/460 |
Wetted Materials | Carbon, Ceramic, 304 Stainless Steel, Viton |
Width | 6.556" |
