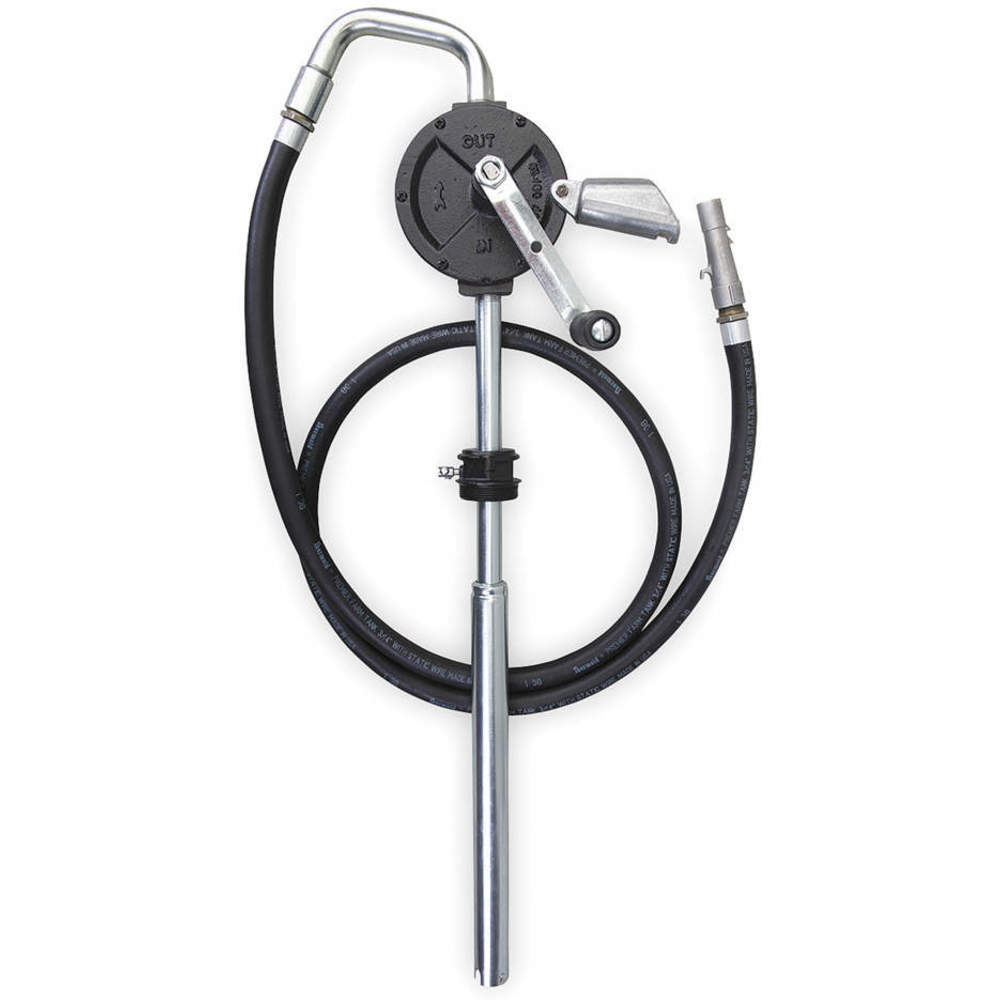

| Item | Hand Operated Drum Pump |
| Adapter Size | 2" |
| Compatible Chemicals | Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Kerosene, Motor Oil |
| Discharge | 0-10 GPM |
| Discharge Tube Inside Dia. | 3/4" |
| Discharge Tube Length | 96" |
| Discharge Tubing Finish | Zinc Plated |
| Discharge Tubing Hose Material | Neoprene |
| Discharge Tubing Material | Steel |
| Discharge Tubing Nozzle Material | Aluminum |
| Features | 1 Industry Standard For Rotary Pumps, These Are By Far The Heaviest Duty, Ideal For Tough Outdoor Use In Extreme Weather Conditions, 2. Solid Cast Iron Construction, Fully Cnc Machined To Close Tolerances, 3. Graphite Vanes Are Self-Lubricating And No |
| Fits Container Size | 16 gal. to 55 gal. |
| Flow Rate | 10 GPM |
| For Container Type | Bucket, Drum, Pail |
| For Use On | 16 To 55 Gal. Drums |
| For Use With | Diesel, Kerosene, Non Corrosive Media, Oil Based Media |
| Gasket Material | Paper |
| Height | 9 1/2" |
| Hose Inside Dia. | 3/4" |
| Hose Material | Neoprene |
| Hose Outside Dia. | 1 1/8" |
| Housing Finish | Powder Coated |
| Housing Material | Cast Iron |
| Includes | 3/4" X 8 ft. Anti-Static Rubber Hose, Nozzle And Nozzle Holder |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Length | 10 7/8" |
| Max. Flow Rate For Oil | 7 GPM |
| Max. Head | 10 ft. |
| Max. Pressure | 10 psi |
| Max. Temp. | 250°F |
| Metered | No |
| Not Recommended Chemicals | Antifreeze (Coolant), Deionized Water, Ethyl (Ethanol), Fertilizers, Fresh Water, Fungicides, Herbicides, Lithium Grease, Methyl Ethyl Ketone (Mek), Salt Water, Sodium Hypochlorite/Bleach (To 20%) |
| Overall Length | 10 7/8" |
| Power Source | Hand Operated |
| Seal Material | Graphite |
| Self Priming | Yes |
| Suction Tube Length | 18 3/16" to 34 1/2" |
| Suction Tube Outside Dia. | 1" |
| Suction Tube Type | Telescopic |
| Wetted Material | Cast Iron, Graphite, Paper, Polypropylene, Steel |
| Ship weight (kg) | 10.2 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 25.4 |
| HS code | 8413200000 |
| Country of Origin | IN |
