| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Baseplate Material | Aluminum |
| Connection | Mini |
| Contact Configuration | Complementary NPN/PNP Auto-configure |
| Contact Rating | 300 mA |
| Housing Material | Polyphenylene Sulfide |
| Input Voltage | 10-42V DC |
| Ip Rating | IP67 |
| Led Indicator | Power, Green Output, Status, Red |
| Length | 7.26" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 300 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Number Of Pins | 4 |
| Product Height | 2.66" |

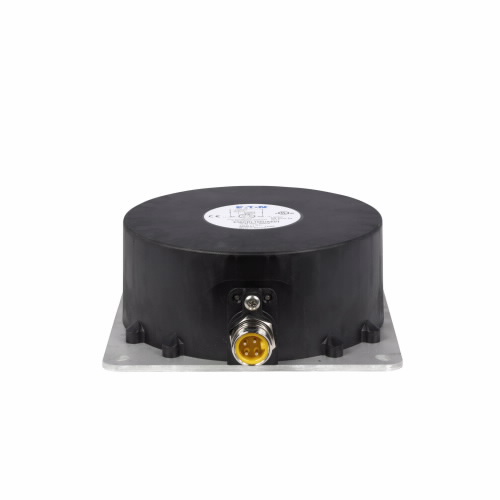

| Product Name | Eaton E56 Pancake Inductive Proximity Sensor |
| Product Width | 6 3/4" |
| Protection Type | Short Circuit And Auto-Reset |
| Series | E56 |
| Type | Inductive Pancake Proximity Sensor |
| Warranty | 1 yr. |
| Weight | 5 lbs. |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 6.76 |
| Ship length (cm) | 18.44 |
| Ship width (cm) | 17.15 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
E56ADL40UAH | SGD 897.40 | RFQ
|
 |
E56ADL40SA | SGD 1,066.30 | |
 |
E56ADL40UA | SGD 791.46 | |
 |
E56ADL40UAD01 | SGD 1,104.01 | |
|
E56ADL40SAE01 | SGD 841.16 | RFQ
|
|
E56ADL40UAE01 | SGD 1,131.42 | RFQ
|
|
E56ADL40SAH | - | RFQ
|
