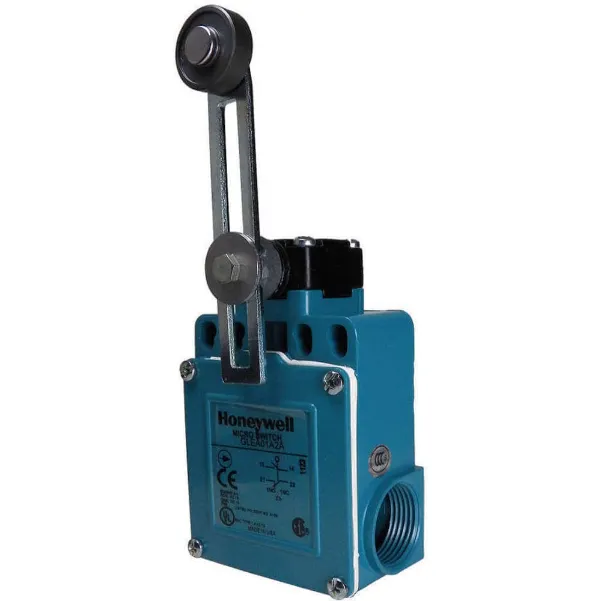

| Item | Global Limit Switch |
| Actuator Length | 1.34" to 3.11" |
| Actuator Location | Side |
| Actuator Style | Rotary Lever Arm |
| Amps | 10 |
| Arm Material | Metal |
| Body Material | Zinc Die Cast |
| Contact Form | DPDT, Snap Action, 2NC/2NO, Silver Contacts |
| Depth | 1.18" |
| Electrical Connection | Screw Terminals |
| Height | 2.37" |
| Ip Rating | 67 |
| Movement | CW/CCW |
| Nema Rating | 1, 4, 12, 13 |
| Operating Force | 1.5 in.-lb. |
| Operating Temp. Range | -40 Degrees to 185 Degrees F |
| Roller Dia. | 0.75" |
| Roller Material | Nylon |
| Roller Width | 0.25" |
| Travel | Pretravel (PT) 26 Degrees ; Overtravel (OT) 49 Degrees ; Differential Travel (DT) 7 Degrees ; Operating Position (OP) 26 Degrees |
| Voltage Rating | 300AC/250DC |
| Width | 2.56" |
| Wiring Entry | 1/2"-14 NPT Conduit |
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.62 |
| HS code | 8536509055 |
| Country of Origin | US |
