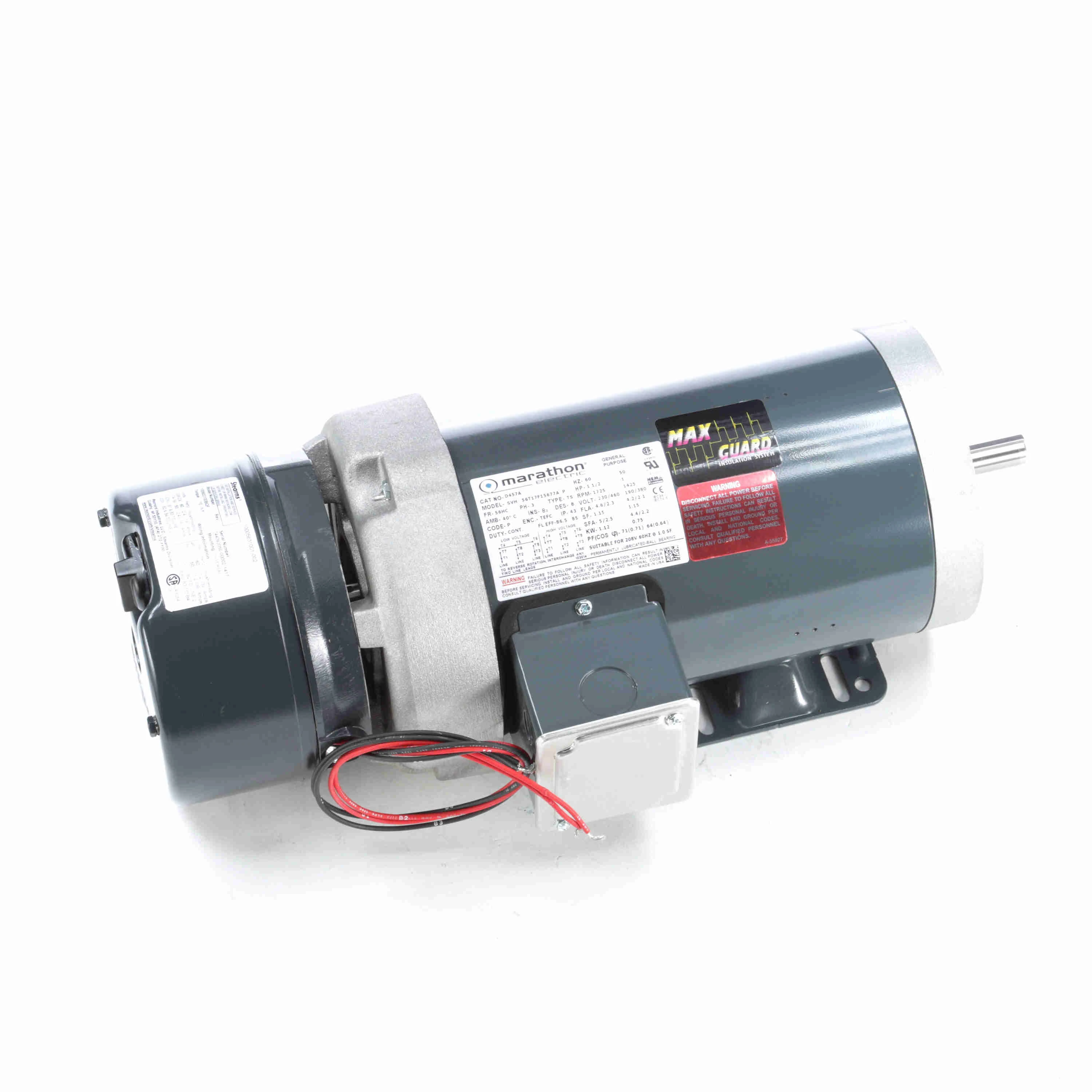

LEESON 056T17F15677 Brake Motor, TEFC, 1 1/2 HP, 1725 RPM, 230/460V AC | CH9TPL 61KN01

LEESON 056T17F15677 56T17F15677A / D457A Brake Motor, 1.50 and 1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: CH9TPL Model: 056T17F15677Cross Ref: 61KN01 / 56T17F15677A / D457A
In Stock

Get it by Monday, Apr 21

SGD 2,730.72 /unit (inc. GST)
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemBrake Motor
Ambient Temp.40°C
Bearing ProtectionDouble Seal Full Contact
Bearing TypeBall
Brake Rating10 ft.-lbs. , 10 lbs.-ft.
Conduit Box LocationExterior
Conduit Box PositionF1
Duty CycleContinuous
Frame56HC
Frame MaterialSteel
Frequency50/60 Hz
Full Load Amps2.3A
Hp1 1/2 hp
IncludesKey
Insulation ClassClass B
Inverter RatedNo
Length Less Shaft16 7/8"
Motor ApplicationBrake Motor
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationClockwise/Counter Clockwise , CW/CCW
Motor TypeThree Phase
Mounting TypeRigid Base
Nameplate Rpm1725 RPM
No. Of Speeds1
Nominal Efficiency86.5%
Overall Length18 11/16"
Phase3
Rpm Range1701-1800 RPM
SeriesSeries 56000
Service Factor1.15
Shaft Dia.5/8"
Shaft Length1 7/8"
Thermal ProtectionNone
Usable @ 200vNo
Usable @ 208vNo
Voltage230/460V AC
Warranty18 Months
Weight58 lbs.

Shipping Info:

Ship weight (kg) 26.1
Ship height (cm)35.56
Ship length (cm)56.36
Ship width (cm)41.91
Country of OriginMX
