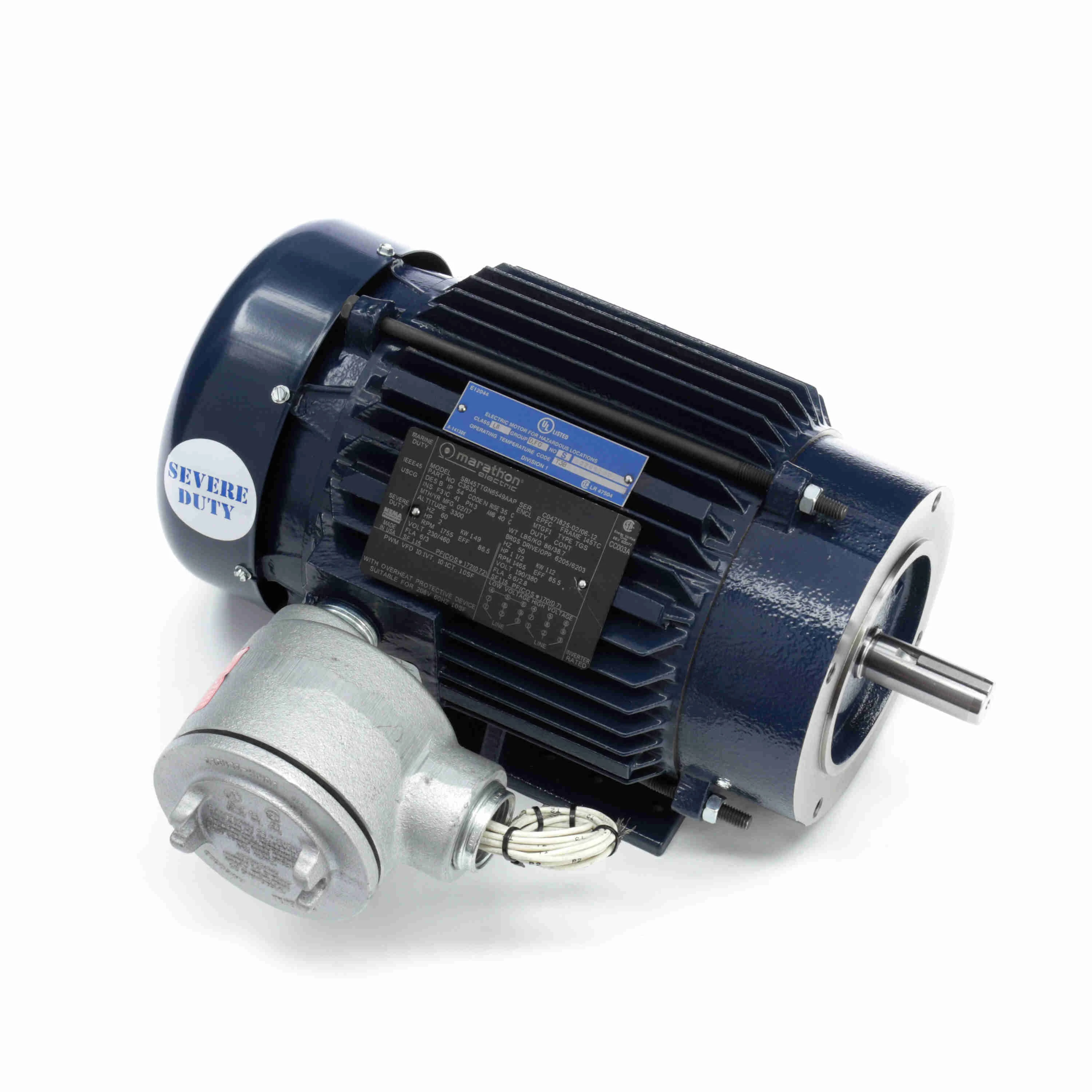

| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 6-6.2/3/5.6/2.8A |
| Hazardous Location Class | 1D/2F, G |
| Hp | 2 hp |
| Insulation Class | Class F |
| Motor Application | Hazardous Location |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise , CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Overall Length | 15 1/4" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Voltage | 208-230/460V AC |
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Nameplate RPM | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|
 |
143TTGN6551 | 143TC | 3-3/1.5, 2.8/1.4 | 1 | 1735 | 85.5% | SGD 1,790.40 | |
 |
145TTGN6536 | 145TC | 4.7-4.6/2.3, 4.2/2.1 | 1.5 | 1755 | 86.5% | SGD 1,895.61 |
